Features

• High speed: tpd = 8.1 ns (typ.) at VCC = 5 V

• Low power dissipation Standby state: 4 μA (max) at Ta = 25°C Active state: 600 μA (max) at Ta = 25°C

• High noise immunity: VNIH = VNIL = 28% VCC (min)

• Power down protection is equipped with all inputs.

• Balanced propagation delays: tpLH ∼− tpHL

• Wide operating voltage range: VCC (opr) = 2 to 5.5 V

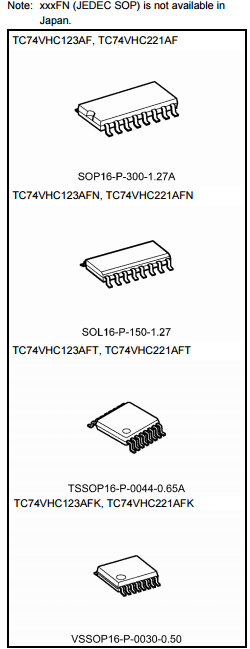

• Pin and function compatible with 74HC123A/221A

The TC74VHC123A/221A are high speed CMOS MONOSTABLE MULTIVIBRATOR fabricated with silicon gate C2MOS technology.

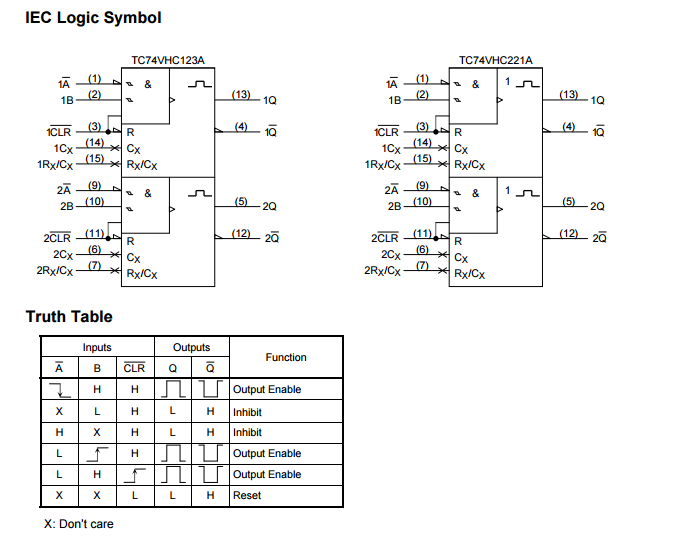

There are two trigger inputs, A input (negative edge), and B input (positive edge). These inputs are valid for a slow rise/fall time signal (tr = tf = 1 s) as they are schmitt trigger inputs. This device may also be triggered by using CLR input (positive edge).

After triggering, the output stays in a MONOSTABLE state for a time period determined by the external resistor and capacitor (RX, CX). A low level at the CLR input breaks this state.

An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 V to 3 V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
