L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver

Product Categories

Anterwell Technology Ltd.

Contact Now

L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver

Name: L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver
Brand: Anterwell
Price: 1 USD

Brand Name : Anterwell

Model Number : L6386D

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8300pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Output Voltage : -3 to Vboot - 18 V

Supply Voltage : - 0.3 to +18 V

Vboot Floating Supply Voltage : -1 to 618 V

Allowed Output Slew Rate : 50 V/ns

Junction Temperature : 150 °C

Storage Temperature : -50 to 150 °C

Contact Now

L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver

HIGH VOLTAGE RAIL UP TO 600V
dV/dt IMMUNITY +- 50 V/nsec iN FULL TEMPERATURE RANGE
DRIVER CURRENT CAPABILITY: 400 mA SOURCE, 650 mA SINK
SWITCHING TIMES 50/30 nsec RISE/FALL WITH 1nF LOAD
CMOS/TTL SCHMITT TRIGGER INPUTS WITH HYSTERESIS AND PULL DOWN
UNDER VOLTAGE LOCK OUT ON LOWER AND UPPER DRIVING SECTION
INTEGRATED BOOTSTRAP DIODE
OUTPUTS IN PHASE WITH INPUTS

DESCRIPTION

The L6386 is an high-voltage device, manufactured with the BCD ”OFF-LINE” technology. It has a Driver structure that enables to drive independent referenced Channel Power MOS or IGBT. The Upper (Floating) Section is enabled to work with voltage Rail up to 600V. The Logic Inputs are CMOS/TTL compatible for ease of interfacing with controlling devices.

ABSOLUTE MAXIMUM RATINGS

Symbol	Parameter	Value	Unit
Vout	Output Voltage	-3 to Vboot - 18	V
Vcc	Supply Voltage	- 0.3 to +18	V
Vboot	Floating Supply Voltage	-1 to 618	V
Vhvg	Upper Gate Output Voltage	- 1 to Vboot	V
Vlvg	Lower Gate Output Voltage	-0.3 to Vcc +0.3	V
Vi	Logic Input Voltage	-0.3 to Vcc +0.3	V
Vdiag	Open Drain Forced Voltage	-0.3 to Vcc +0.3	V
Vcin	Comparator Input Voltage	-0.3 to Vcc +0.3	V
dVout/dt	Allowed Output Slew Rate	50	V/ns
Ptot	Total Power Dissipation (Tj = 85 °C)	750	mW
Tj	Junction Temperature	150	°C
Ts	Storage Temperature	-50 to 150	°C

Note: ESD immunity for pins 12, 13 and 14 is guaranteed up to 900V (Human Body Model)

L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver

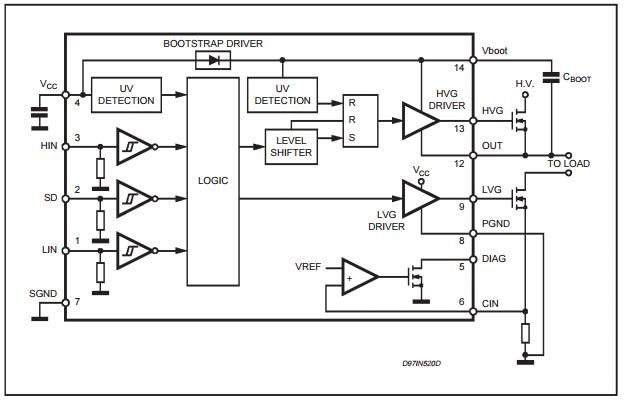

BLOCK DIAGRAM

L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver

PIN CONNECTION

L6386D electronic integrated circuit Integrated Circuit Chip High Voltage High And Low Side Driver
